阻抗:4Ω

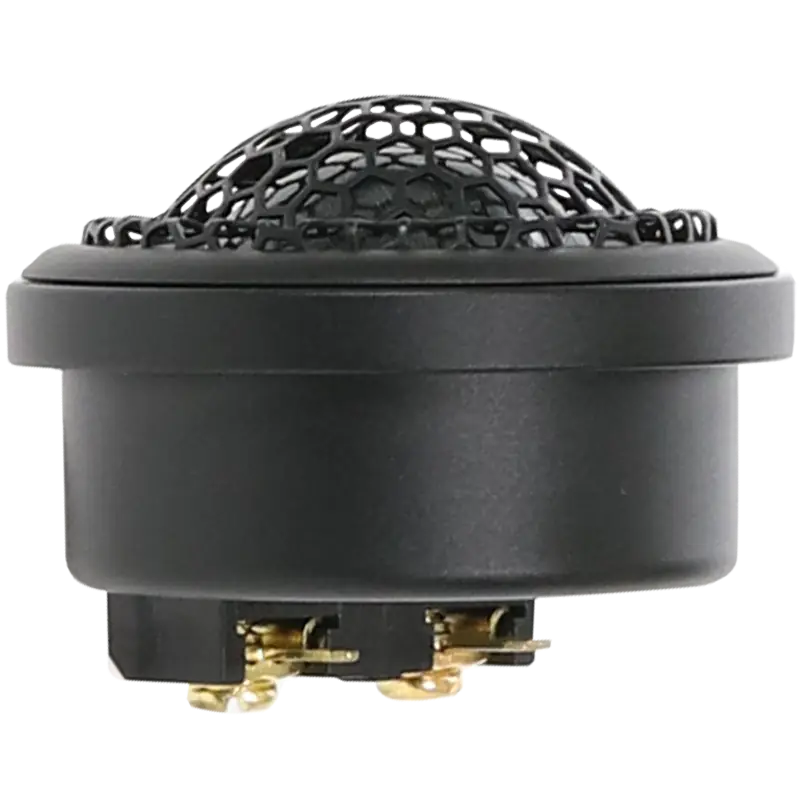

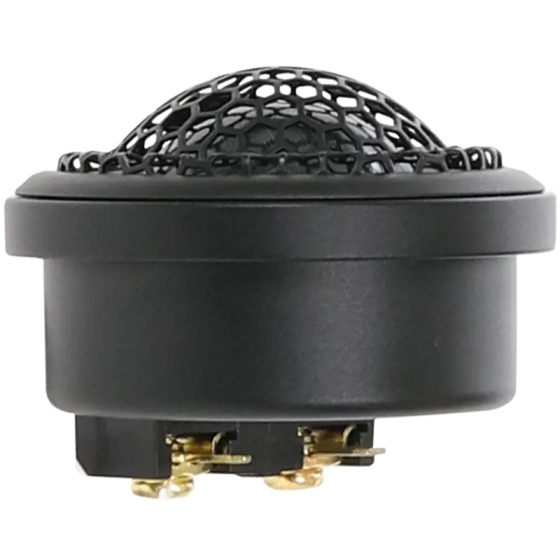

RMS功率:130W| Model | High-Performance Tweeter |
|---|---|
| Diameter | 28 mm / 1.1″ |
| Power Handling (RMS/max.) | 90 / 140 Watt |
| Impedance | 4 Ohm |
| Efficiency | 91 dB |
| Frequency Response | 2000 Hz – 25 kHz |
| Schwingspule | 28 mm / 1.1″ |
| Recommended High Pass Filter | 3000 Hz @ 12 dB/oct |
| Membran Layout | Coated silk dome |
| Magnet Material | Neodymium |
| Mounting Ø | 48 mm / 0.19″ |
| Mounting Depth | 29 mm / 1.14″ |
| Resonance Frequency (Fs) | 1350 Hz |

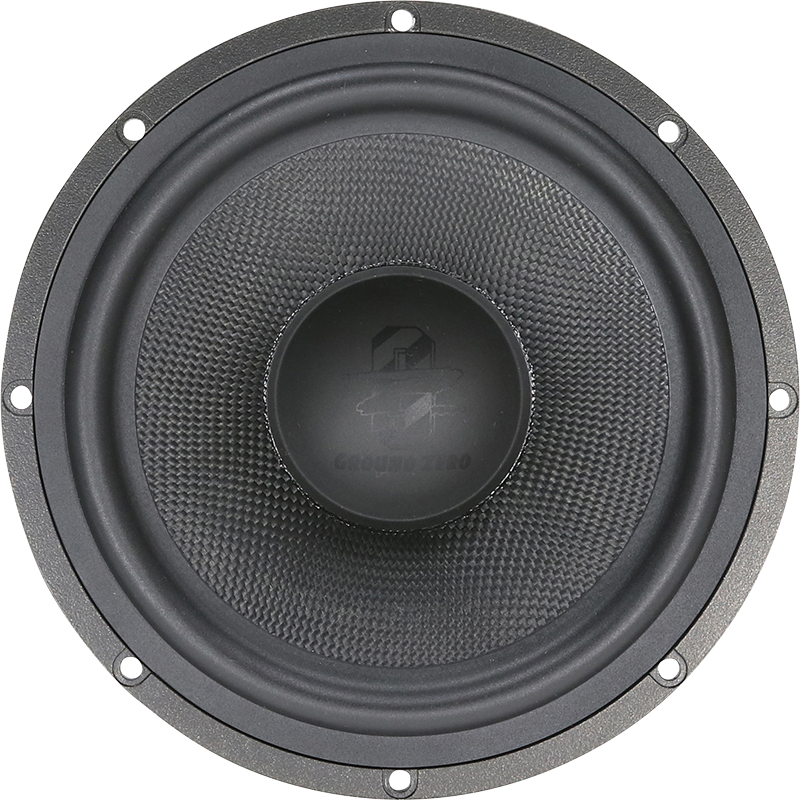

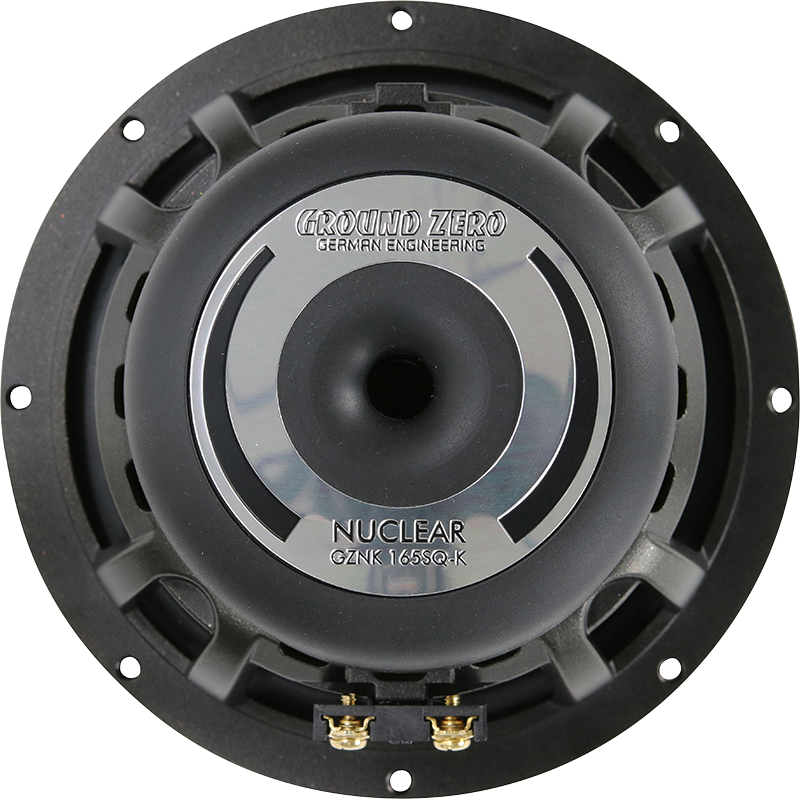

| Model | High-quality SQ midwoofer |
|---|---|
| Diameter | 165 mm / 6.5″ |
| Power handling (RMS/max.) | 130 / 190 Watts |
| Impedance | 4 Ohms |
| Efficiency | 88 dB |
| Frequency Response | 40 Hz – 5 kHz |
| Voice coil | 38 mm / 1.5″ |
| Cone | Kevlar |
| Magnet material | Neodymium-ferrite hybrid system |
| Mounting Ø | 144 mm / 5.67″ |
| Mounting depth | 70 mm / 2.76″ |
| Resonance frequency (Fs) | 43 Hz |
