三音路喇叭套組

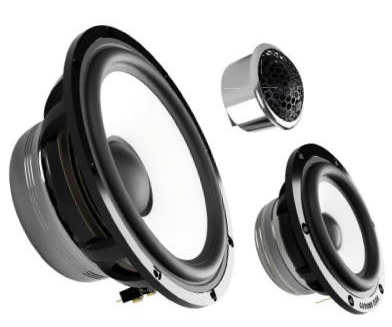

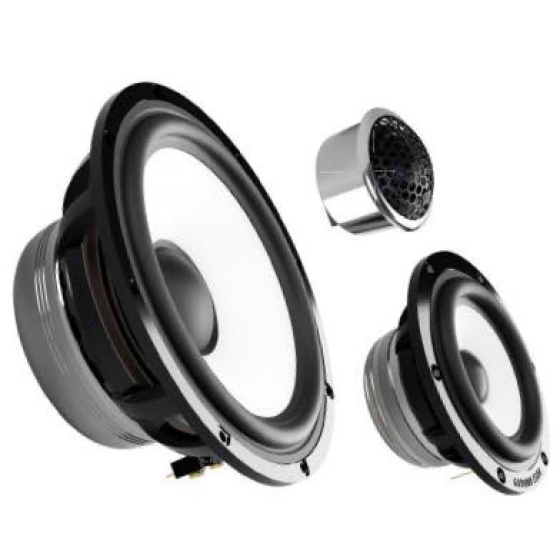

德國精品 Ground Zero 三音路喇叭組 GZPC-165.3SQ

阻抗:4Ω

RMS功率:300W
最大功率:480W
響應頻率:30HZ -30KHZ
靈敏度:90dB
安裝深度:68mm

● 建議售價:80,000 ( 不含線材/工資 )
產品詳細介紹

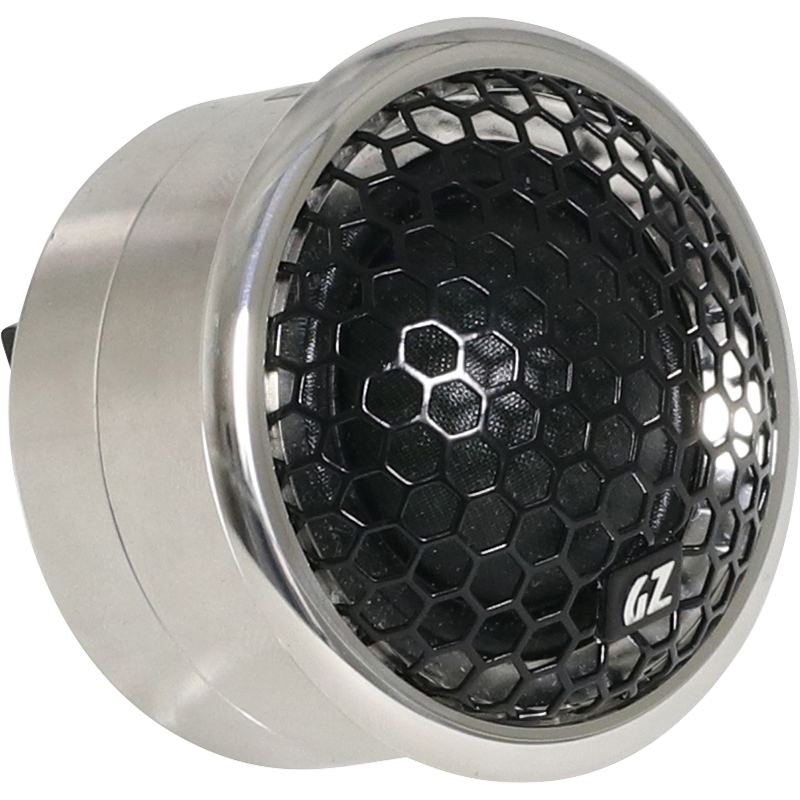

Model High-End Tweeter
Diameter 28 mm / 1.10″
Power handling (RMS/max.) 100 / 150 Watts
Impedance 4 Ohms
Efficiency 90 dB
Frequency Response 2000 Hz – 30 kHz
Cone 2 layer coated silk
Mounting Ø 48 mm / 1.89″
Mounting depth 35 mm / 1.38″
Resonance frequency (Fs) 770 Hz

Model High end midrange speaker
Diameter 80 mm / 3.15″
Power handling (RMS/max.) 70 / 110 Watts
Impedance 4 Ohms
Efficiency 89 dB
Frequency Response 150 Hz – 4000 Hz
Voice coil 20 mm / 0.79″
Cone Ceramic coated aluminum
Magnet material Neodymium
Mounting diameter 77 mm / 3.03″
Mounting depth 39 mm / 1.54″
Resonance frequency (Fs) 100 Hz

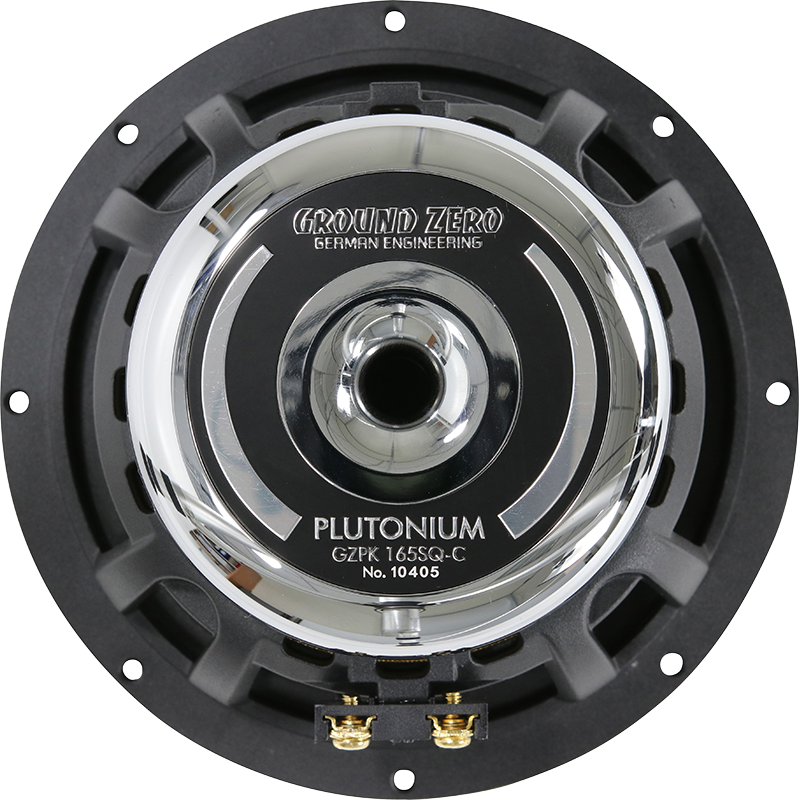

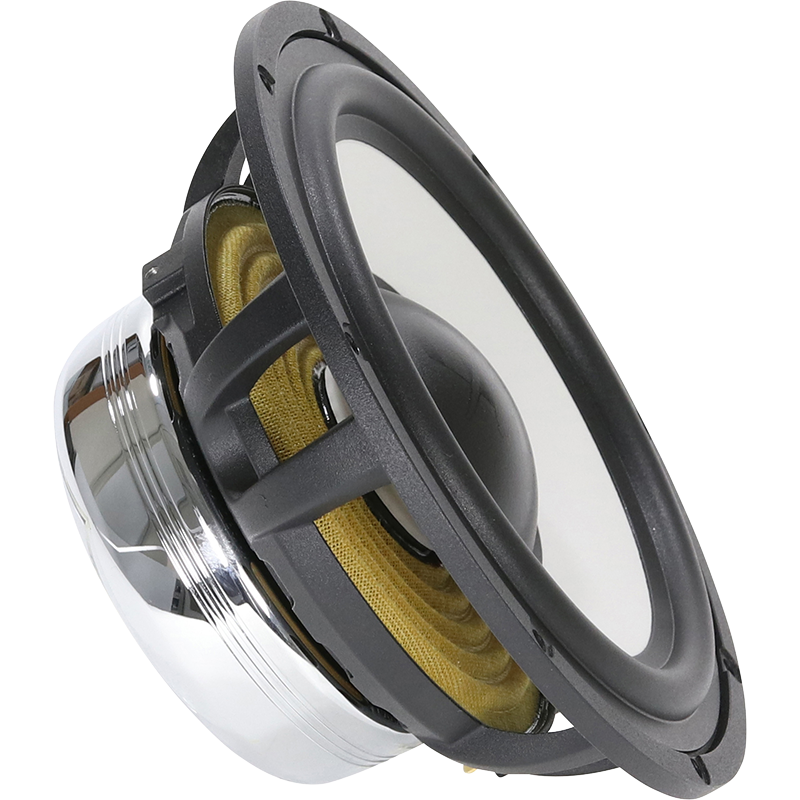

Model High-quality SQ midwoofer
Diameter 165 mm / 6.5″
Power handling (RMS/max.) 140 / 200 Watts
Impedance 4 Ohms
Efficiency 89 dB
Frequency Response 40 Hz – 5000 Hz
Voice coil 38 mm / 1.5″
Cone Aluminum-ceramics
Mounting Ø 144 mm / 5.67″
Mounting depth 70 mm / 2.76″
Resonance frequency (Fs) 38 Hz
